INTRO
1. 회귀분석이란?
2. 단순회귀분석
4. 다항회귀분석
회귀분석 방법 : summary
- Residuals(잔차)
- Coefficients(회귀계수)
- 모델 적합도 : Multiple R-squared, Adjusted R-squared, F-statistic, p-value
다항회귀분석(Polynomial Regression Analysis)
dataset
x | y |
1 | 5 |
2 | 3 |
3 | 2 |
4 | 3 |
5 | 4 |
6 | 6 |
7 | 10 |
8 | 12 |
9 | 18 |
1단계
Estimate regression model
- df1 data plot으로 독립변수 x와 종속변수 y는 2차식의 형태를 나타낸다.
- 선형 회귀 모델 진단 : 이미 결과는 알고 있지만 참고
test_regression_4.R
rm(list=ls())
setwd = "~/Rcoding"
## dataset
x = seq(1,9)
y = c(5,3,2,3,4,6,10,12,18)
## Estimate regression model
df1 = data.frame(x,y)
df1
plot(df1)
model_1 = lm(y ~ x,data=df1)
model_1
summary(model_1)
par(mfrow=c(2,2))
plot(model_1)
출력결과
> source("~/R_coding/test_regression_4_1.R", echo=TRUE)
> rm(list=ls())
> setwd = "~/Rcoding"
> ## dataset
> x = seq(1,9)
> y = c(5,3,2,3,4,6,10,12,18)
> ## Estimate regression model
> df1 = data.frame(x,y)
> df1
x y
1 1 5
2 2 3
3 3 2
4 4 3
5 5 4
6 6 6
7 7 10
8 8 12
9 9 18
> plot(df1)
> model_1 = lm(y ~ x,data=df1)
> model_1
Call:
lm(formula = y ~ x, data = df1)
Coefficients:
(Intercept) x
-1.167 1.633
> summary(model_1)
Call:
lm(formula = y ~ x, data = df1)
Residuals:
Min 1Q Median 3Q Max
-3.0000 -2.3667 -0.2667 0.9000 4.5333
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) -1.1667 2.2296 -0.523 0.61694
x 1.6333 0.3962 4.122 0.00445 **
---
Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
Residual standard error: 3.069 on 7 degrees of freedom
Multiple R-squared: 0.7083, Adjusted R-squared: 0.6666
F-statistic: 16.99 on 1 and 7 DF, p-value: 0.004446
> par(mfrow=c(2,2))
> plot(model_1)
Regression Eq.
$ y = -1.167 + 1.633*x $
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) -1.1667 2.2296 -0.523 0.61694
x 1.6333 0.3962 4.122 0.00445 **
--- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
Residual standard error: 3.069 on 7 degrees of freedom
Multiple R-squared: 0.7083, Adjusted R-squared: 0.6666
F-statistic: 16.99 on 1 and 7 DF, p-value: 0.004446
Multiple R-squared: 0.7083, Adjusted R-squared: 0.6666
추정된 회귀식이 데이터를 70.83% 설명하고 있음.
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) -1.1667 2.2296 -0.523 0.61694
x 1.6333 0.3962 4.122 0.00445 **
- (Intercept) 통계적으로 유의하지 않음
- x 계수 p-value < 0.05
Regression Analysis
Residuals vs Fitted plot(or chart)에서 오차항은 평균이 0이고 분산이 일정하다는 가정을 만족하지 않는다.
결정계수 R2에서 70% 수준의 설명이 가능하나 새로운 변수를 적용하여 더 적합한 추정 회귀식을 찾을 필요가 있다.
2단계
Estimate regression model adjusted by 2nd order
- df1 data에 x2(x^2)을 생성하여 df2 dataset으로 2차식 회귀식을 추정해본다.
test_regression_4.R
....
## Estimate regression model adjusted by 2nd order
x2 = x^2
df2 = cbind(x2,df1)
df2
plot(df2)
model_2 = lm(y ~ x+x2,data=df2)
model_2
summary(model_2)
par(mfrow=c(2,2))
plot(model_2)
par(mfrow=c(1,1))
출력결과
....
> ## Estimate regression model adjusted by 2nd order
> x2 = x^2
> df2 = cbind(x2,df1)
> df2
x2 x y
1 1 1 5
2 4 2 3
3 9 3 2
4 16 4 3
5 25 5 4
6 36 6 6
7 49 7 10
8 64 8 12
9 81 9 18
> plot(df2)
> model_2 = lm(y ~ x+x2,data=df2)
> model_2
Call:
lm(formula = y ~ x + x2, data = df2)
Coefficients:
(Intercept) x x2
7.1667 -2.9121 0.4545
> summary(model_2)
Call:
lm(formula = y ~ x + x2, data = df2)
Residuals:
Min 1Q Median 3Q Max
-0.9606 -0.1606 0.0303 0.2242 0.9455
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 7.16667 0.78728 9.103 9.87e-05 ***
x -2.91212 0.36149 -8.056 0.000196 ***
x2 0.45455 0.03526 12.893 1.34e-05 ***
---
Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
Residual standard error: 0.6187 on 6 degrees of freedom
Multiple R-squared: 0.9898, Adjusted R-squared: 0.9864
F-statistic: 292.2 on 2 and 6 DF, p-value: 1.05e-06

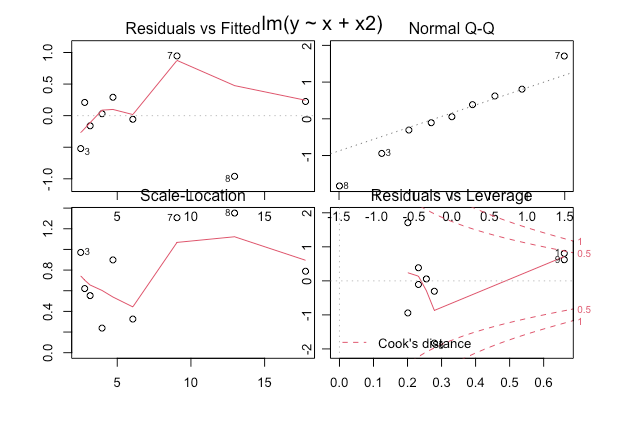

> par(mfrow=c(2,2))
> plot(model_2)
> par(mfrow=c(1,1))
Regression Eq.
$ y = 7.1667 -2.9121*x + 0.4545*x^2 $
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 7.16667 0.78728 9.103 9.87e-05 ***
x -2.91212 0.36149 -8.056 0.000196 ***
x2 0.45455 0.03526 12.893 1.34e-05 ***
--- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
Residual standard error: 0.6187 on 6 degrees of freedom
Multiple R-squared: 0.9898, Adjusted R-squared: 0.9864
F-statistic: 292.2 on 2 and 6 DF, p-value: 1.05e-06
F-statistic: 292.2 on 2 and 6 DF, p-value: 1.05e-06
유의수준 5% 추정된 회귀 모델이 통계적으로 매우 유의하다.
Multiple R-squared: 0.9898, Adjusted R-squared: 0.9864
추정된 회귀식이 데이터를 98.98% 설명하고 있음.
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 7.16667 0.78728 9.103 9.87e-05 ***
x -2.91212 0.36149 -8.056 0.000196 ***
x2 0.45455 0.03526 12.893 1.34e-05 ***
- (Intercept) p-value < 0.001
- x 계수 p-value < 0.001
- x2 계수 p-value < 0.001
Regression Analysis
수정된 결정계수 Adjusted R-squared 0.9864로 추정된 회귀식이 98.64% 데이터를 설명함.
x2(x^2)항이 추가했을 때 그렇지 않을 때보다 회귀식의 추정이 훨씬 잘됐음을 확인할 수 있다.
